H3477R CH= 24H21, 10H20
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 342652
-
- alternative name: Chicago Radio Lab
Copy from Zenith catalog.

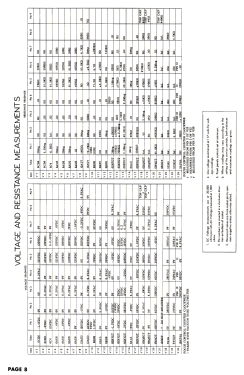

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 34
- Valves / Tubes
- 6CB6 6CB6 6C4 6AU6 6AU6 6AU6 6AU6 12AT7 12AU7 6BN6 6BF5 6BN6 6SN7GT 6SN7GT 6SN7GTA 6AL5 6SN7GT 6BQ6GT 6BQ6GT 6W4GT 1B3GT 5U4G 5Y3G 6BA6 12AT7 6BA6 6BA6 6AU6 6T8 6C4 6V6GT 6V6GT 5Y3GT 19AP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 inch = 29.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: H3477R CH= 24H21, 10H20 - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Zenith H3477R is an AC operated, 34 tube combination 16" porthole style b/w TV with US standard VHF Tuner channels 2 thru 13, AM/FM radio and phonograph. Uses 23 tube TV chassis 24H21, 10 tube AM/FM radio chassis 10H20 and picture tube 19AP4A. The AM band frequency tuning range is 540-1620kHz. The FM band frequency tuning range is 88-108MHz.
- Literature/Schematics (1)

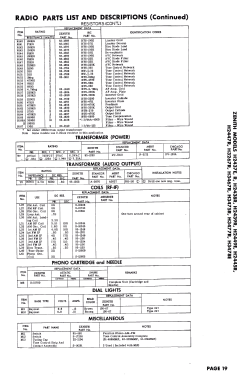

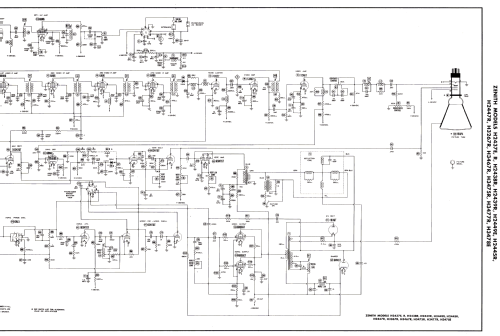

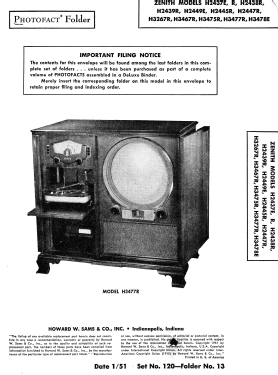

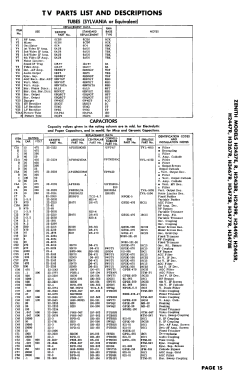

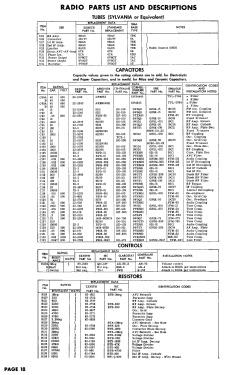

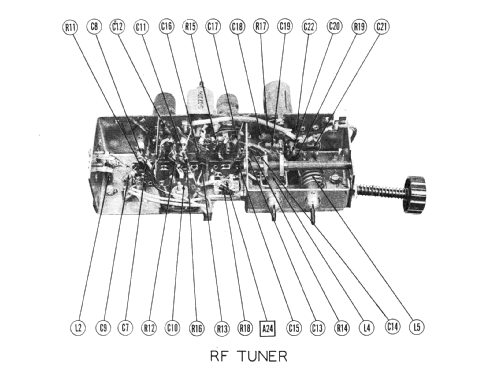

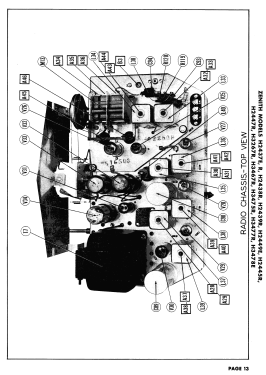

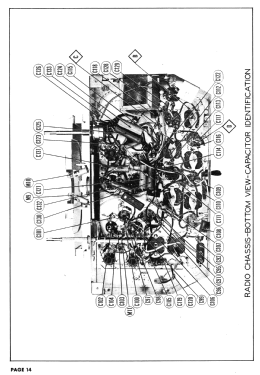

- Photofact Folder, Howard W. SAMS (Set 120 folder 13 dated 1-51)
