H615 Ch= 6G05
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68214
-
- alternative name: Chicago Radio Lab
Close up Photo Front View
Copy gen. von Ron Potter Radio Attic
Ebay Seller lmintzmyer Item 300701741215
Ebay Seller lmintzmyer Item 300701741215
Ebay Seller lmintzmyer Item 300701741215
RECONSTRUCTED LABEL

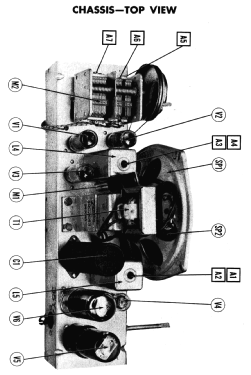

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117V = 110 -120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: H615 Ch= 6G05 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 320 x 200 x 170 mm / 12.6 x 7.9 x 6.7 inch
- Notes
-
Zenith model H615 is an AC-DC operated superheterodyne receiver with loop antenna.
- Net weight (2.2 lb = 1 kg)
- 2.8 kg / 6 lb 2.7 oz (6.167 lb)
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Mentioned in
- Guide to Old Radios
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-1951, Set 140, Folder 14)
