• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68230

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12BA6 12AT7 12BA6 12BA6 12AU6 19T8 35C5

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Material
• Bakelite case

• from Radiomuseum.org

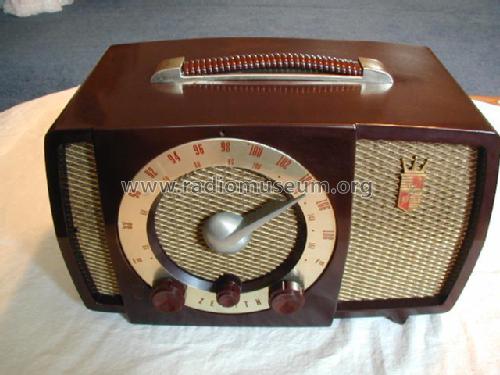

• Model: H724Z Ch= 7H02Z - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13 x 7.5 x 7 inch / 330 x 191 x 178 mm

• Notes
• Selenium Rectifier.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 11, 1951

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 134, Folder 14, Aug. 1951)
