H725Z1 Ch= 7G01Z1 green
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 315687
-
- alternative name: Chicago Radio Lab

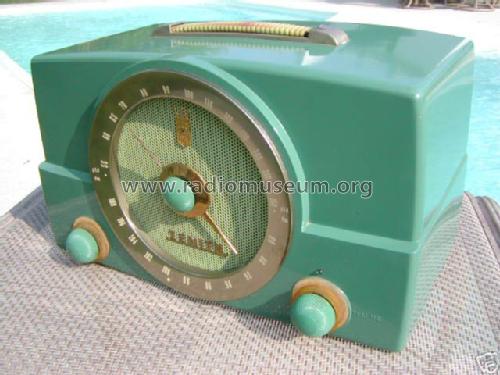

Picture from Hans Amberger.

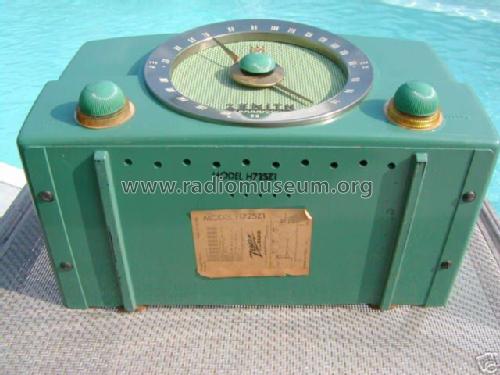

Picture from Hans Amberger.

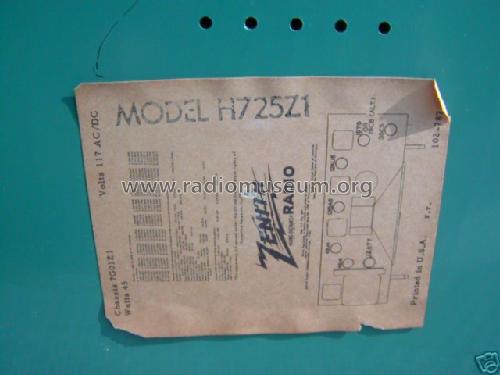

RECONSTRUCTED LABEL
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: H725Z1 Ch= 7G01Z1 [green] - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15 x 9 x 8 inch / 381 x 229 x 203 mm
- Net weight (2.2 lb = 1 kg)
- 11 lb 11 oz (11.687 lb) / 5.306 kg
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-58, Set 423, Servicer)
- Author
- Model page created by David Erali. See "Data change" for further contributors.
