• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84815

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6BJ6 12AT7 6AB4 6BA6 6BA6 6AU6 6T8 12AU7 6V6GT 6V6GT 5U4GB

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

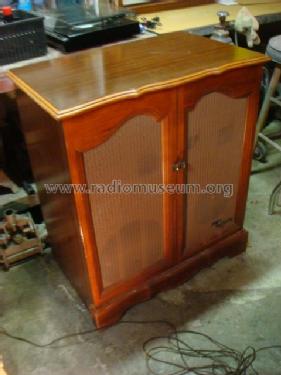

• Model: HF1185RD Ch= 11A20 - Zenith Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 29.5 x 33.25 x 18 inch / 749 x 845 x 457 mm

• Notes
• Push-pull output stage.

• Price in first year of sale
• 350.00 USD

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Literature/Schematics (1)

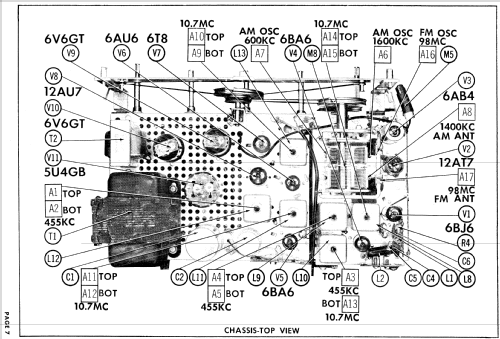

• Photofact Folder, Howard W. SAMS (Date 10-58, Set 416, Folder 12)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
