• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1958 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 325433

• • alternative name: Chicago Radio Lab

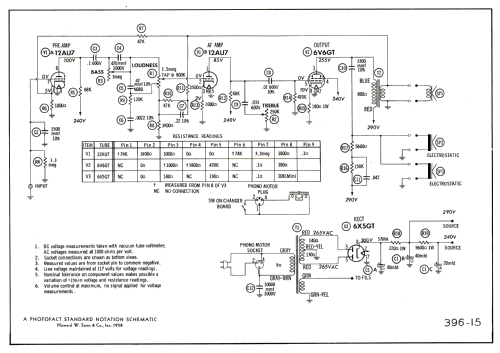

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AU7 6V6GT 6X5GT

• Main principle
• Audio-Amplification

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: HF16E Ch= 3AO3 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Zenith model HF16E is an AC operated phono amplifier with 4 speed automatic record changer.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 396 Folder 15 dated 4-58)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
