HFY12R Ch=3Y04

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
82237

- alternative name: Chicago Radio Lab

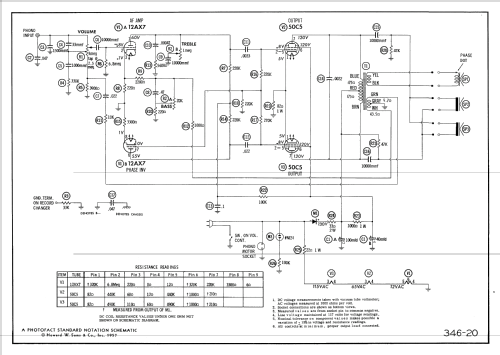

Schematics

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 127567) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 504419) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 504420) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 504421) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 504422) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 1821025) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 1821026) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 1821027) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 1821028) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 1821029) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 1821030) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (3)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 272378) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)
Image copy from Photofactfolder

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 2154869) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 2154870) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 2154871) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 2154872) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 2154873) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 2154874) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 2154875) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)

HFY12R Ch=3Y04; Zenith Radio Corp.; (ID = 2154877) R-Player — Zenith Radio Corp.; HFY12R Ch=3Y04 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
3

Valves / Tubes
12AX7 50C5 50C5

Main principle
Audio-Amplification

Wave bands
- without

Details
Changer (Record changer)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
3 Loudspeakers / Ø 8 inch = 20.3 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: HFY12R Ch=3Y04 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Notes
The Zenith HFY12R with chassis 3Y04 is an AC operated Phonograph Amplifier with 4 speed automatic record changer. Has Selenium Rectifier and push-pull output stage. For service information on record changer , see similar V-M model 1200 Pfotofact Set 290 Folder 11 or record changer manual CM-7.
Speaker SP1 is a PMD speaker , SP2 and SP3 are electrostatic speakers.

Circuit diagram reference

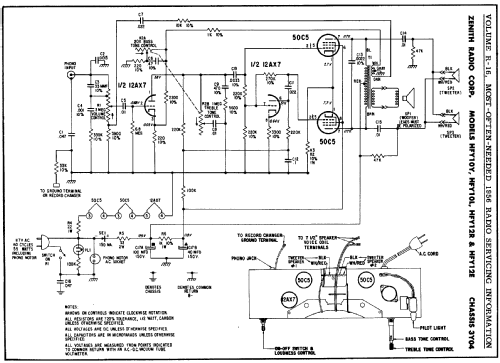

Beitman Radio Diagrams Vol. 16, 1956

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Date 2-57, Set 346, Folder 20)

Author
Model page created by Egon Penker. See "Data change" for further contributors.
