J2030R Ch= 20J21
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 351046
-
- alternative name: Chicago Radio Lab

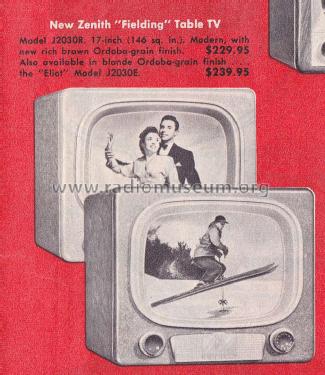

Copy from Zenith broshure.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6CB6 6CB6 6AB4 6CB6 6CB6 6CB6 6CB6 12AT7 6BN6 6BF5 6BE6 6BL7GT 6AL5 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 17FP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: J2030R Ch= 20J21 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Zenith model J2030R is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 20J21, VHF tuner S-17947 and picture tube 17FP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 151, folder 1A, dated 1951)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 159, folder 18, dated 2-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
