• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1952 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 261900

• • alternative name: Chicago Radio Lab

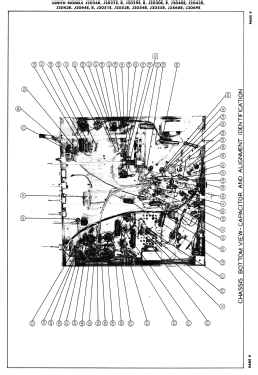

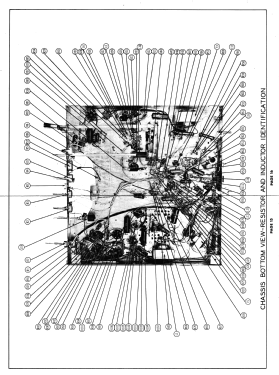

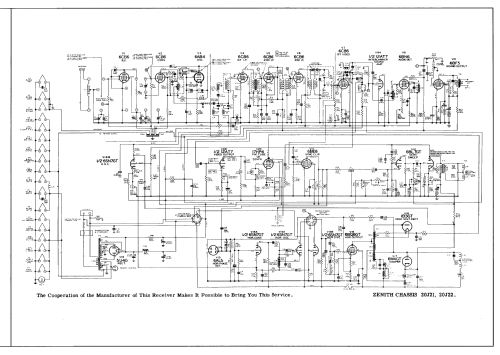

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6CB6 6CB6 6AB4 6CB6 6CB6 6CB6 6CB6 12AT7 6BN6 6BF5 6BE6 6BL7GT 6AL5 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 17FP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: J3069E The Barrie Ch= 20J21 & 10H20Z - Zenith Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 38.375 x 38.0625 x 21.438 inch / 975 x 967 x 545 mm

• Notes

• 17" b/w TV, AM/FM radio, VHF TV US FCC standard tuner prepared for adding UHF channel strips. Three speed changer.

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 151, Folder 1A, 1951)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 159, folder 18, dated 2-52)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
