J615Y Ch=6J05
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119540
-
- alternative name: Chicago Radio Lab

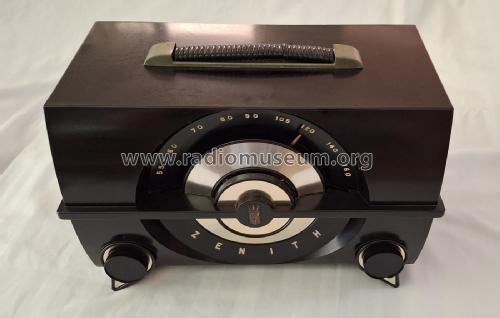

With courtesy by Ebayseller mr_gallian0
With courtesy by Ebayseller mr_gallian0
RECONSTRUCTED LABEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: J615Y Ch=6J05 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- Color = ebony.
- Source of data
- -- Collector info (Sammler)
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 12, 1952
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition)
- Author
- Model page created by Hans Amberger. See "Data change" for further contributors.
