J616E (the Owl) Ch= 6J03
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 313747
-
- alternative name: Chicago Radio Lab
Copy from Ebay seller 4u2nvnbuy.

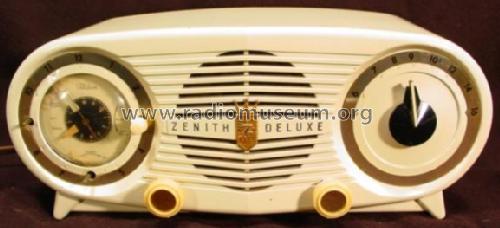

Picture from Hans Amberger

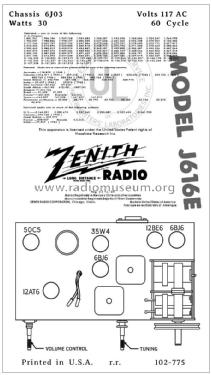

RECONSTRUCTED LABEL
RECONSTRUCTED LABEL
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: J616E Ch= 6J03 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
Similar in style to the J514 series except that it is lableled "Zenith Deluxe" and has the Zenith crest on the front. The following models are identical except for cabinet color.
Model Number Cabinet Color J616 Walnut J616E Bisque J616G Gray J616W White J616Y Black
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition) (page 313)
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 12, 1952 (page 165)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 179, Folder 14, 9-52)
- Author
- Model page created by David Erali. See "Data change" for further contributors.
