L514G Ch= 5L02
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 87184
-
- alternative name: Chicago Radio Lab
L-514G Ebay seller bloomfieldantiquemarket

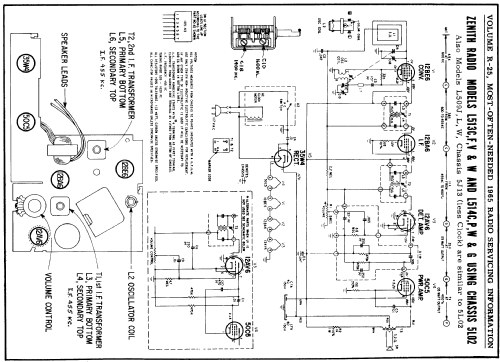

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: L514G Ch= 5L02 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 12.5 x 6.13 x 5.13 inch / 318 x 156 x 130 mm
- Notes
- Zenith Radio Corp. model L514G (L 514 G) according to Beitman R-25 is part of a family with the models L513C, L513F, L513V, L513W and L514C, L514P, L514W and L514G, all using chassis 5L02. Some models with chassis 5J13, like L509J, L509L and L509W are similar to 5L02 - but less clock. They all have a built in loop antenna. There are two versions of AF amplifiers, one with an UI (105-43) with 7 pins and one without.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 25, 1965
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
