• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77617

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: L520 Ch= 5L07 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 12.5 x 5.5 x 6 inch / 318 x 140 x 152 mm

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 14, 1954

• Mentioned in
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Literature/Schematics (1)

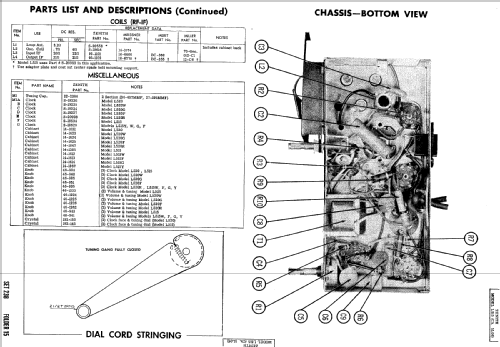

• Photofact Folder, Howard W. SAMS (set 238 folder 15)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
