• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 87288

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12DT8 12BA6 12BE6 12BA6 12AU6 14GT8 35C5

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

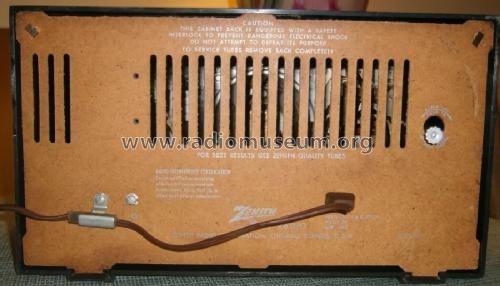

• Model: L727C Ch= 7L03 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Selenium Rectifier
  The Zenith Modell L727C is a 7 Tube AM-FM Receiver with Clock.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 25, 1965

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 2-65, Set 737, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
