• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73555

• • alternative name: Chicago Radio Lab

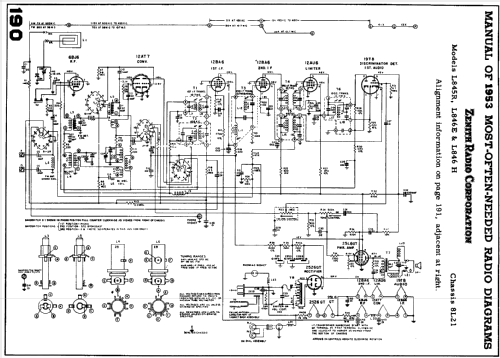

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BJ6 12AT7 12BA6 12BA6 12AU6 19T8 25L6GT 25Z6GT

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

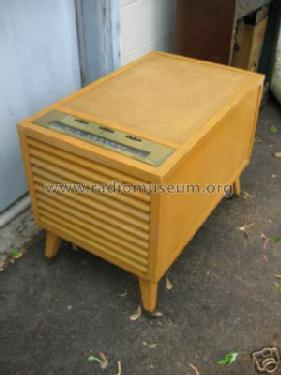

• Model: L846 Ch=8L21 - Zenith Radio Corp.; Chicago,

• Shape
• Console: Chairside Radio.

• Notes
• Sam´s 234-14

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
