• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1950 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 67989

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 7A7 7B8 7A7 7E6 7C5 7C5 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 265 kHz; Export model

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org

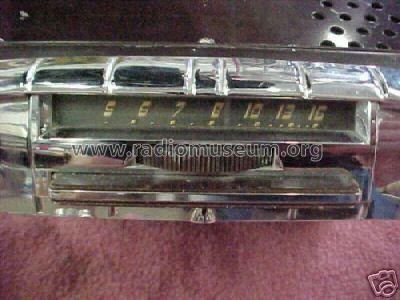

• Model: 7ML780E Lincoln - Zenith Radio Corp.; Chicago,

• Shape
• Chassis only or for «building in»

• Notes

• Export model.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Literature/Schematics (1)
• Rider's Perpetual, Volume 18 = covering late 1947 to early 1948
