• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1941

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 67987

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 7A7 7B8 7A7 7B6 7C5 7C5 6X5 or 0Z4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org

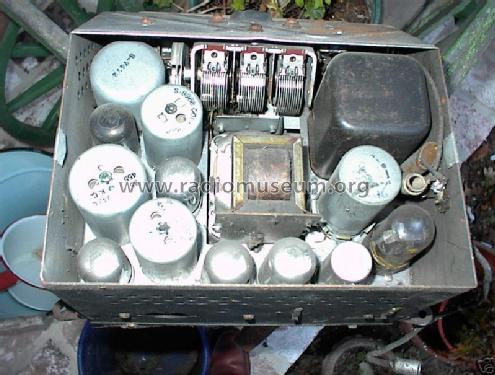

• Model: 7ML592 Lincoln Zephyr Ch= 7A09 - Zenith Radio Corp.; Chicago,

• Shape
• Chassis only or for «building in»

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Zenith Radio The Glory Years 1936-1945
