• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1964 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 138059

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7A 50C5 50C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: LPS50C Ch= 3L03 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Two 5" x 7" PM elliptical speaker.
  Diode Rectifier.

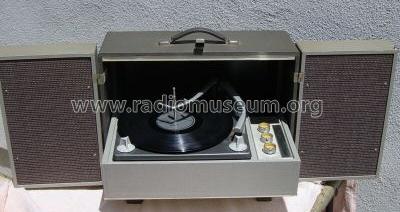

  The Zenith Modell LPS50C is a AC Operated One Tube Phono Amplifier with 4 Speed Automatic Record Changer.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 10-64, Set 721, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
