• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77491

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BJ6 12BE6 6BJ6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: R623R Ch= 6R03 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 12.75 x 5.5 x 6.5 inch / 324 x 140 x 165 mm

• Notes

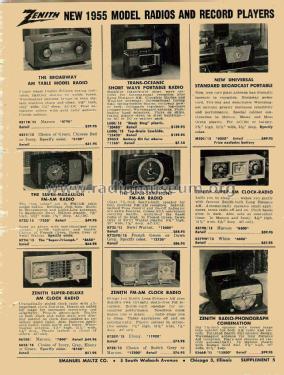

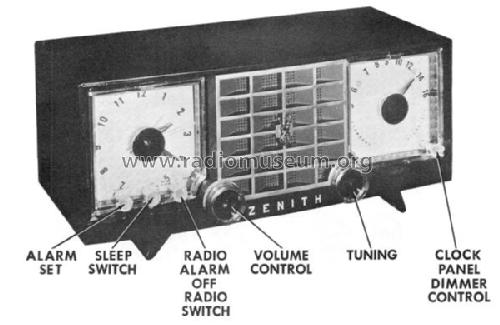

• The Zenith Modell R623R is an AC Operated AM Superheterodyne Receiver with Electric Clock.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 15, 1955

• Literature/Schematics (1)

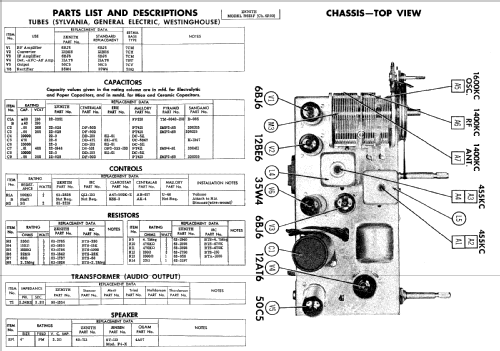

• Photofact Folder, Howard W. SAMS (Date 4-54, Set 274, Folder 17)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
