R-723 7H04Z2 6BJ6

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955 ?

perfect model

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
188013

- alternative name: Chicago Radio Lab

Schematics

R-723 7H04Z2; Zenith Radio Corp.; (ID = 2097844) Radio — Zenith Radio Corp.; R-723 7H04Z2 (3)

R-723 7H04Z2; Zenith Radio Corp.; (ID = 892261) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)

R-723 7H04Z2; Zenith Radio Corp.; (ID = 892262) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)

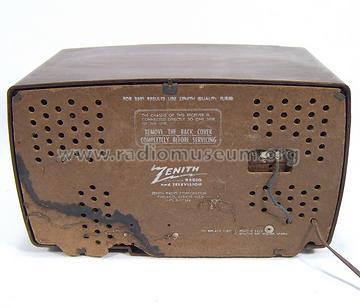

R-723 7H04Z2; Zenith Radio Corp.; (ID = 892266) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)

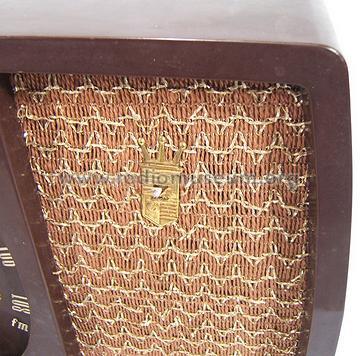

R-723 7H04Z2; Zenith Radio Corp.; (ID = 892263) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)

R-723 7H04Z2; Zenith Radio Corp.; (ID = 892265) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)

R-723 7H04Z2; Zenith Radio Corp.; (ID = 892264) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)

R-723 7H04Z2; Zenith Radio Corp.; (ID = 2097840) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)
Print Advertise 1955

R-723 7H04Z2; Zenith Radio Corp.; (ID = 2097841) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)
Print Advertise 1955

R-723 7H04Z2; Zenith Radio Corp.; (ID = 2100362) Radio — Zenith Radio Corp.; R-723 7H04Z2 (2)
From RM member Franz Scharner.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
6BJ6 12AT7 6BJ6 12BA6 12AU6 19T8 35C5

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
AC/DC-set / 117 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Bakelite or Plastics (type unknown)

from Radiomuseum.org
Model: R-723 7H04Z2 [6BJ6] - Zenith Radio Corp.; Chicago,

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)
12.8125 x 9.5625 x 7.25 inch / 325 x 243 x 184 mm

Notes
The model Zenith R-723 has two bands: BC 540 - 1620kHz, FM 88 - 108MHz. See also the CONELRAD compliant tuning dial.

See also the variant with seven 12-volt tubes. There are also most similar models H-723, T-723 und Y-723 and at least with the same chassis the model G-723.

Price in first year of sale
49.95 USD

Author
Model page created by Hans Amberger. See "Data change" for further contributors.
