• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 173508

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

• Power out
• 0.125 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Royal E10W - Zenith Radio Corp.; Chicago,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• The Zenith Royal E10W is a portable, battery operated 8 transistor AM radio. AM Tuning Range: 530 to 1630 kHz. Uses Qty(1) 9V battery. Has earphone jack that disconnects the speaker for private listening. Has separate oscillator and mixer stages. Also has push-pull output stage.

• Literature/Schematics (1)

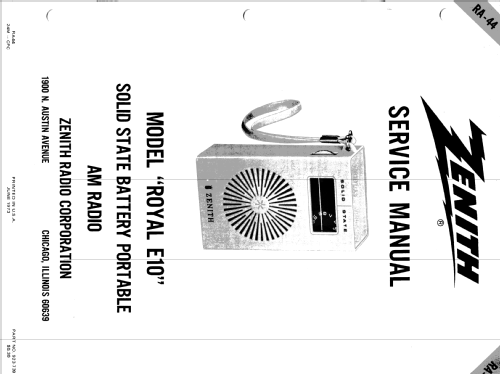

• - - Manufacturers Literature (Zenith Datasheet RA44)
