RL2603H3 Ch= 3L02/6L01
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 269105
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-117 Volt
- Loudspeaker
- 6 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: RL2603H3 Ch= 3L02/6L01 - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

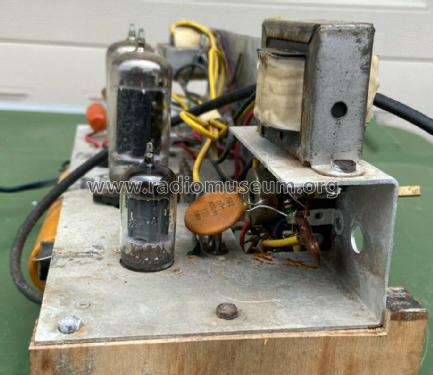

6 Tube AM/FM Tuner Chassis 6L01, 3 Tube Amplifier Chassis 3L02, 4 Speed Automatic Record Changer.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 739, Folder 11, Date 2-65)
- Author
- Model page created by Eli Ouziel. See "Data change" for further contributors.
- Other Models
-
Here you find 4493 models, 4098 with images and 3605 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Collections
The model RL2603H3 is part of the collections of the following members.
