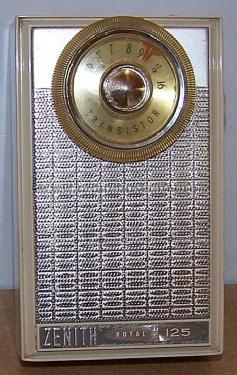

Royal 125 Shirt Pocket Radio Ch= 6JT41Z1
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 126311
-
- alternative name: Chicago Radio Lab
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Royal 125 Shirt Pocket Radio Ch= 6JT41Z1 - Zenith Radio Corp.; Chicago,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 67 x 111 x 32 mm / 2.6 x 4.4 x 1.3 inch
- Notes
-
Not mentioned in Smith: Zenith Transistors.
Available in: yellow/white, beige/brown, charcoal.Weight without batteries.
- Net weight (2.2 lb = 1 kg)
- 0.238 kg / 0 lb 8.4 oz (0.524 lb)
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 23, 1963
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 23, 1963
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
