• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152131

• • alternative name: Chicago Radio Lab

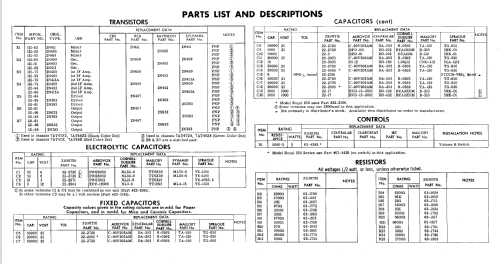

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N411 2N409 2N409 2N409 2N362 2N632 2N632

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA : 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Royal 200K Ch= 7AT48Z4 - Zenith Radio Corp.; Chicago,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 100 x 163 x 44 mm / 3.9 x 6.4 x 1.7 inch

• Notes
• The Zenith Model Royal 200K is a shirtpocket transistor radio. Color=Brown.

• Price in first year of sale
• 44.95 USD

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 9-59, Set 455, Folder 20)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
