• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73994

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4x1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

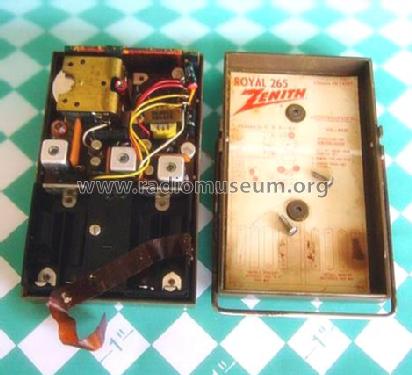

• Model: Royal 265 Pocket Radio Ch= 6KT41Z1 - Zenith Radio Corp.; Chicago,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Royal 250 derivate with vernier tuning; available in: brown, light beige, ebony;

• Price in first year of sale
• 30.00 $

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 24, 1964

• Mentioned in
• Zenith Transistor Radios

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
