Royal 26 (R26Y)
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1969 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 303036
-
- alternative name: Chicago Radio Lab
eBay-Artikelnummer:125591620050
eBay-Artikelnummer:125591620050
eBay-Artikelnummer:125591620050
eBay-Artikelnummer:125591620050
eBay-Artikelnummer:125591620050
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.125 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Royal 26 - Zenith Radio Corp.; Chicago,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 74 x 115 x 44 mm / 2.9 x 4.5 x 1.7 inch
- Notes
-

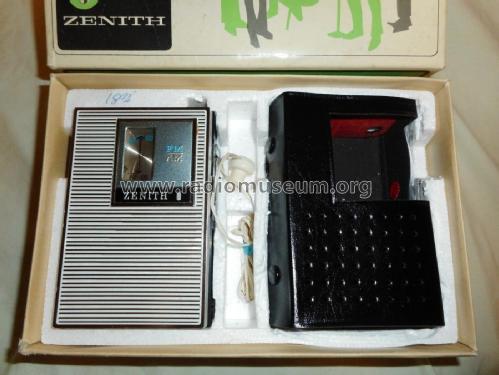

Made in Hong Kong. AM/FM. Telescoping antenna.
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-117 (November, 1970))
- Author
- Model page created by Ray Albright. See "Data change" for further contributors.
