Royal 500E Ch= 8CT40Z7
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 173879
-
- alternative name: Chicago Radio Lab
Picture from 1960 Zenith sales brochure
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Power out
- 0.1 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

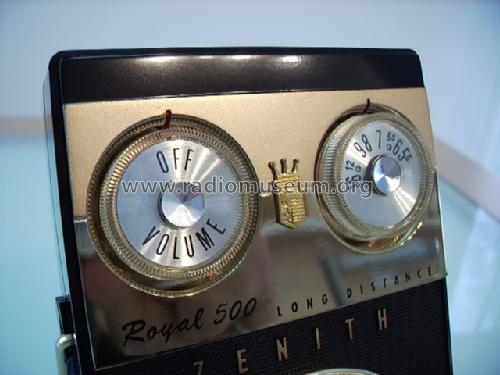

- Model: Royal 500E Ch= 8CT40Z7 - Zenith Radio Corp.; Chicago,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 3.5 x 5.75 x 1.5 inch / 89 x 146 x 38 mm
- Notes
-
Has non-breakable nylon case
- Source of data
- Guida Pratica Transistor Radios
| Radio a transistor tascabili americane: Zenith Royal 500 “Owl Eyes” (Per cortesia di L.Salvatore/ARM) | 3327 KB |
