Royal 500H Deluxe 500-H Ch=8HT40Z2

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1961

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
73990

- alternative name: Chicago Radio Lab

Schematics

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 154546) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (3)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 154547) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (3)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 2117431) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

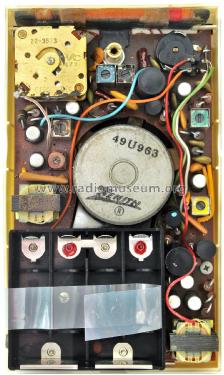

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 2117432) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 136320) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 235451) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 235452) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 235449) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 235450) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 235453) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 236596) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 771314) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 771315) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 771316) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 771317) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

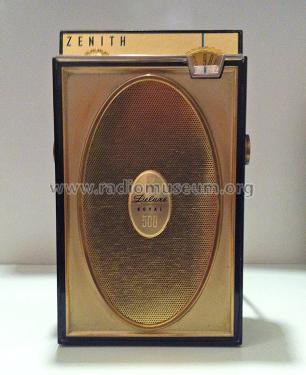

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1218829) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390968) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390969) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390970) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

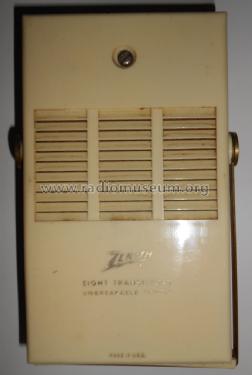

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390971) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390972) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

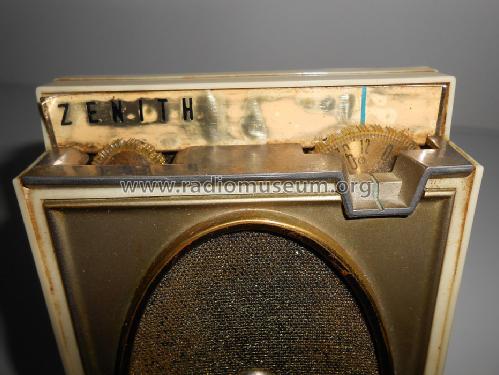

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390973) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

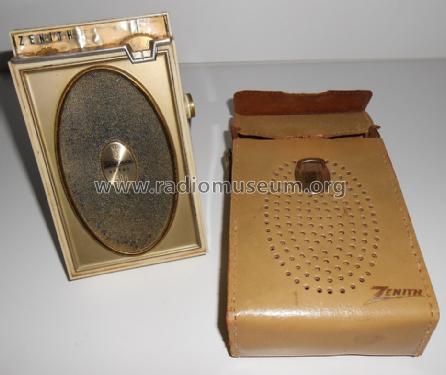

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390974) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390975) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390976) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390977) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390978) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1390979) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (2)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1559867) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1559868) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1559869) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Royal 500H Deluxe 500-H Ch=8HT40Z2; Zenith Radio Corp.; (ID = 1559870) Radio — Zenith Radio Corp.; Royal 500H Deluxe 500-H Ch=8HT40Z2 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
8

Semiconductors
2N1631 2N1527 2N1525 2N1525 2N1525 1N87G 2N407 2N407 2N407

Main principle
Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 4x1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
0.35 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Royal 500H Deluxe 500-H Ch=8HT40Z2 - Zenith Radio Corp.; Chicago,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
4 x 6 x 1.75 inch / 102 x 152 x 44 mm

Notes
colors available: ebony, white, gray;

Price in first year of sale
60.00 $

Circuit diagram reference
Beitman Radio Diagrams Vol. 22, 1962

Mentioned in
Zenith Transistor Radios

Literature/Schematics (1)
Transistor Radios 1954-68

Radio a transistor tascabili americane: Zenith Royal 500 “Owl Eyes” (Per cortesia di L.Salvatore/ARM)

3327 KB

Documents regarding this model

Author
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
