• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 247922

• • alternative name: Chicago Radio Lab

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

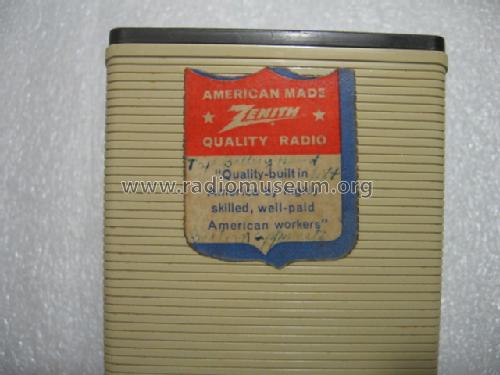

• Model: Royal 50C Shirt Pocket Radio Ch= 6GT40Z1, 6GT40Z2 [charcoal/white] - Zenith Radio Corp.; Chicago,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.75 x 4.25 x 1.5 inch / 70 x 108 x 38 mm

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 310)

• Literature/Schematics (1)
• Zenith Transistor Radios (pp.37, 89)

• Literature/Schematics (2)
• Photofact TSM Transistor Radio Series SAMS (TSM 11, April 1962, pages 151 -154)

• Literature/Schematics (3)
• American Shirt-Pocket Transistor Radios by Eric Wrobbel - Page 22

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
