Royal 950 Golden Triangle Ch= 7AT46Z1

Zenith Radio Corp.; Chicago, IL

Datos

Foro

Imágenes

Colecciones

País
Estados Unidos

Fabricante / Marca
Zenith Radio Corp.; Chicago, IL

Año
1958

Categoría
Radio - o Sintonizador pasado WW2

Radiomuseum.org ID
73953

- alternative name: Chicago Radio Lab

Imágenes
Esquemas

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 74982) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (3)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 74983) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (3)

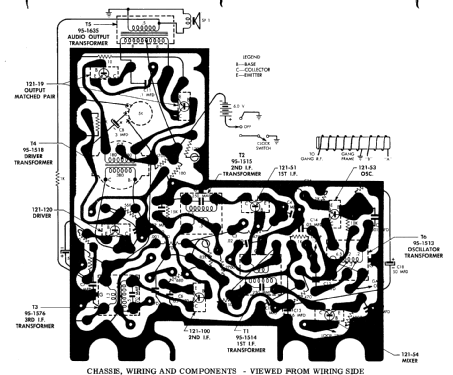

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 74984) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (3)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 74989) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (3)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 74990) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (3)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 74991) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (3)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 600606) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (3)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 122101) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1202632) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Ebay User courier73 Item 260993090605

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 122099) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1202630) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Ebay User courier73 Item 260993090605

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 122102) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 122103) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 122105) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1202631) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Ebay User courier73 Item 260993090605

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1202633) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Ebay User courier73 Item 260993090605

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 122098) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 122100) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1569442) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture Courtesy Of EBAY User: akachuck

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1569443) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture Courtesy Of EBAY User: akachuck

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1569444) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture Courtesy Of EBAY User: akachuck

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1569439) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture Courtesy Of EBAY User: akachuck

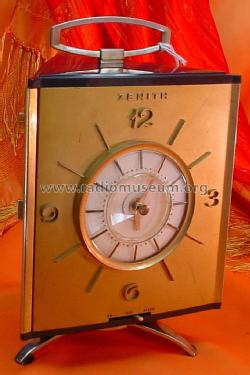

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1569440) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture Courtesy Of EBAY User: akachuck

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1569441) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture Courtesy Of EBAY User: akachuck

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1809965) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture courtesy of guest Anna Samuelian.

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1809966) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture courtesy of guest Anna Samuelian.

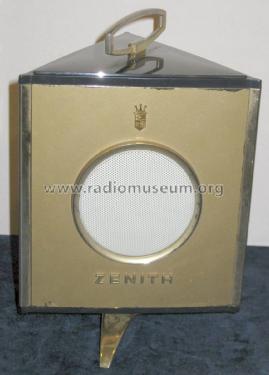

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1809967) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture courtesy of guest Anna Samuelian.

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1809968) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture courtesy of guest Anna Samuelian.

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1809969) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture courtesy of guest Anna Samuelian.

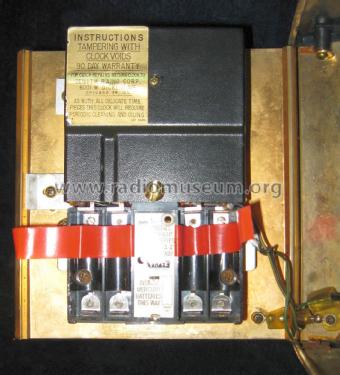

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1809970) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture courtesy of guest Anna Samuelian.

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1809971) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture courtesy of guest Anna Samuelian.

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 1809973) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture courtesy of guest Anna Samuelian.

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 2032317) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
Picture from 1960 Zenith sales brochure

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 2995169) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
eBay item number:335165175565

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 2995170) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
eBay item number:335165175565

Royal 950 Golden Triangle Ch= 7AT46Z1; Zenith Radio Corp.; (ID = 2995171) Radio — Zenith Radio Corp.; Royal 950 Golden Triangle Ch= 7AT46Z1 (2)
eBay item number:335165175565

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

Especificaciones técnicas

Numero de transistores
7

Semiconductores
2N486 2N485 2N483 2N482 2N406 2N406 2N406

Principio principal
Superheterodino en general; ZF/IF 455 kHz; 2 Etapas de AF

Número de circuitos sintonía
5 Circuíto(s) AM

Gama de ondas
OM (onda media) solamente

Tensión de funcionamiento
Pilas / 4 x 1,5 Volt

Altavoz
Altavoz dinámico (de imán permanente) / Ø 3.5 inch = 8.9 cm

Material
Plástico moderno (Nunca bakelita o catalina)

de Radiomuseum.org
Modelo: Royal 950 Golden Triangle Ch= 7AT46Z1 - Zenith Radio Corp.; Chicago,

Forma
Sobremesa con reloj o Radio despertador.

Ancho, altura, profundidad
6 x 7.5 x 6 inch / 152 x 191 x 152 mm

Anotaciones
Swiss clockwork; 17 karat gold trim; clock battery 1,5V;

Peso neto
4 lb 8 oz (4.5 lb) / 2.043 kg

Precio durante el primer año
150.00 $

Referencia esquema
Beitman Radio Diagrams Vol. 20, 1960

Mencionado en
Zenith Transistor Radios

Documentación / Esquemas (1)
-- Original-techn. papers. (Sams photofact set 479 folder 18 date 3-60)

Autor
Modelo creado por Konrad Birkner † 12.08.2014. Ver en "Modificar Ficha" los participantes posteriores.

Otros modelos
Donde encontrará 4514 modelos, 4105 con imágenes y 3646 con esquemas.
