Royal 960 Ch= 11NT42Z8

Zenith Radio Corp.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 343977
    • alternative name: Chicago Radio Lab

 Technical Specifications

  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / D: 8 x 1.5 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.5 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Royal 960 Ch= 11NT42Z8 - Zenith Radio Corp.; Chicago,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 11.875 x 8.5 x 5.5 inch / 302 x 216 x 140 mm
  • Notes

  • The Zenith Royal 960 has the following features:

    • Portable radio, AM/FM bands, Automatic Gain Control for both bands.
    • FM-AFC Automatic Frequency Control.
    • Built-In Wavemagnet AM antenna and telescoping FM antenna.
    • 4 x 6 inch PM speaker.
    • Only made in Ebony color case (Royal 960Y) of durable Polystyrene.

    After the initial Royal 960 production, Zenith renamed the radio to the Zenith Royal 78 The Adventurer, which is identical except for the label.


  • Net weight (2.2 lb = 1 kg)
  • 10 lb (10 lb 0 oz) / 4.540 kg
  • Price in first year of sale
  • 89.95 USD
  • Mentioned in

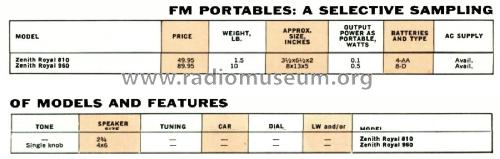

  • HiFi Stereo Review, July 1966, pages 51-54, FM Portable Radios: A Guide for Buyer's.
  • Literature/Schematics (2)
  • Operating Guide Royal 960, Zenith Radio Corp., 202-2789.
  • Author
  • Model page created by Jerry Elarton. See "Data change" for further contributors.
