• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129351

• • alternative name: Chicago Radio Lab

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

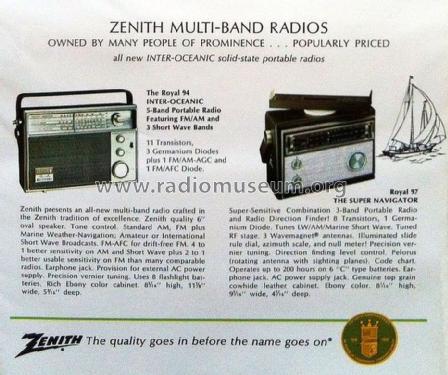

• Model: Royal 97 Super Navigator Direction Finder - Zenith Radio Corp.; Chicago,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Super Navigator - direction finder, LW: 150-400 kHz, BC, SW: 2.0-5.9 Mhz, tuning meter, turnable ferrite antenna. AGC or manual gain control (for direction finding).

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
