SF112W Ch= 4B25
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 79044
-
- alternative name: Chicago Radio Lab

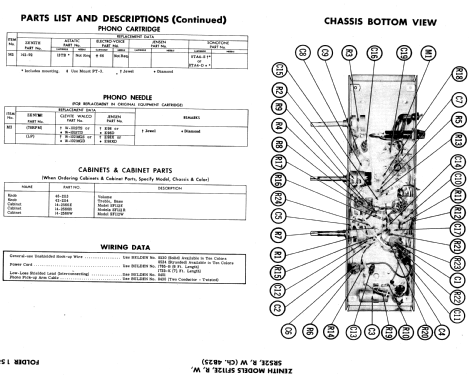

Image copy from photofact folder
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: SF112W Ch= 4B25 - Zenith Radio Corp.; Chicago,
- Notes
- AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 477 folder 15 date 3-60 features the Zenith models SF112E, SF112R and SF112W as the same schematic.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 477 folder 15 date 3-60)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
