SF2505E The Tosca Ch= 5B29
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 155100
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: SF2505E The Tosca Ch= 5B29 - Zenith Radio Corp.; Chicago,
- Shape
- Console with any shape - in general
- Notes

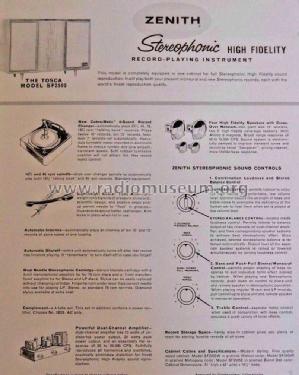

- The Zenith Model SF2505E is an AC operated 5 Tube Phono Amplifier with 4 Speed Automatic Record Changer.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 11-59, Set 462, Folder 19)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
