SF2510L Ch= 1B30 + 7B30
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 159355
-
- alternative name: Chicago Radio Lab
Copy from my Zenith Folder.

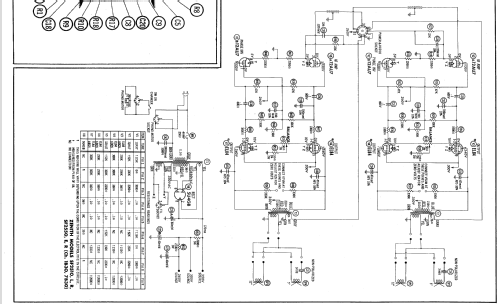

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: SF2510L Ch= 1B30 + 7B30 - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Zenith Model SF2510L is a AC operated 8 Tube Stereo Amplifier with 4 Speed Automatic Changer.
- Literature/Schematics (1)

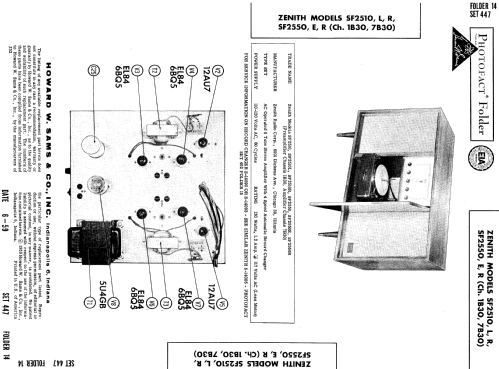

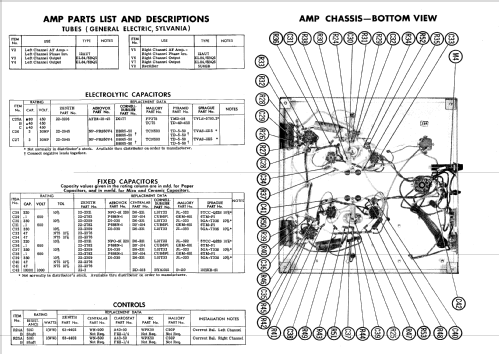

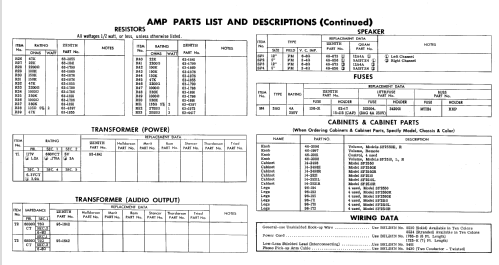

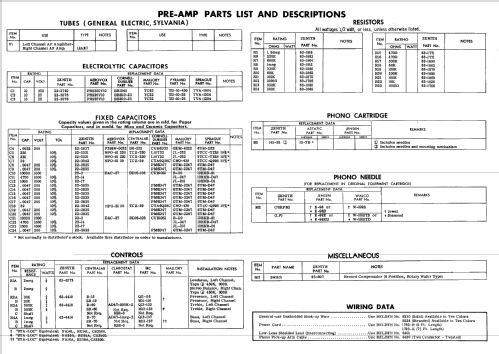

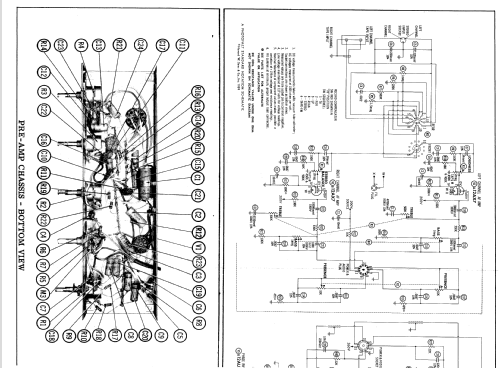

- Photofact Folder, Howard W. SAMS (Date 6-59, Set 447, Folder 14)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
