• Country
• Spain

• Manufacturer / Brand
• Zenith, Telerasa; Barcelona

• Year
• 1961 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 315277

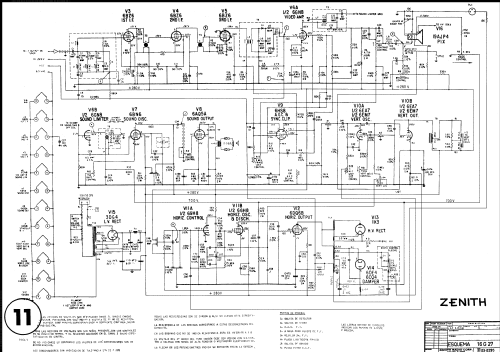

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• unknown_Tube unknown_Tube 6BZ6 6BZ6 6BZ6 6GN8 6HS8 6EA7 or 6EM7 6GH8 6DQ6B 6DE4 or 6CQ4 1K3 6BN6 6AQ5A 3DG4 19AJP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Ch= 16G27 - Zenith, Telerasa; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Notes

• Zenith, Telerasa, Ch= 16G27

  TV B/N 19" con selector rotativo de VHF

  unknown_Tube son los del selector, posiblemente 6GK5 y 6EA8









• Mentioned in
• Esquemario TV REDE, Tomo I, 1964

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
