X-1225 Ch= 13X15

Zenith, Telerasa; Barcelona

  • Year
  • 1965 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 318836

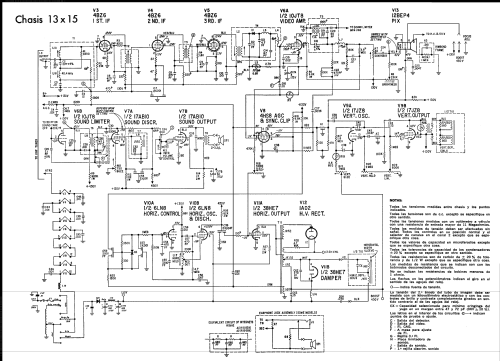

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 13
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; 1 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: X-1225 Ch= 13X15 - Zenith, Telerasa; Barcelona
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Zenith (Telerasa) X-1225 Ch= 13X15

    TV B/N 12"

    • Selector rotativo de VHF Zenith 175-664
    • Selector continuo (sintonizador) de UHF Zenith S-70378



  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
