X-2314 Ch= 14N22
Zenith, Telerasa; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Zenith, Telerasa; Barcelona
- Year
- 1965 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 318837

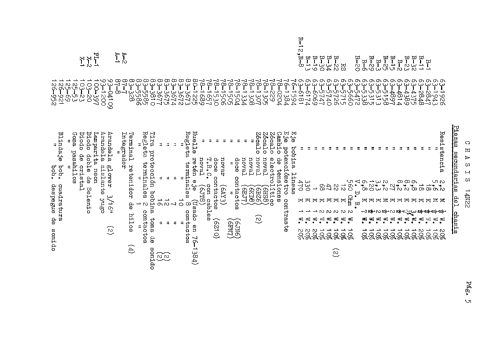

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet with RF-stage; 1 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Metal case
- from Radiomuseum.org
- Model: X-2314 Ch= 14N22 - Zenith, Telerasa; Barcelona
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Zenith (Telerasa) X-2314 Ch= 14N22
TV B/N 23"
- Selector rotativo de VHF Zenith 175-516
- Selector continuo (sintonizador) de UHF Zenith S-70415
- En el esquema aparece un altavoz, pero en la lista de materiales hay 2
- Altavoz elíptico de 2-1/4" x 6-1/4"
- Altavoz Ø de 8"
- Literature/Schematics (1)
- -- Original-techn. papers.
