• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 350781

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Various materials

• from Radiomuseum.org
• Model: Stereo Music Center Z588 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 430 x 218 mm / 24.4 x 16.9 x 8.6 inch

• Notes

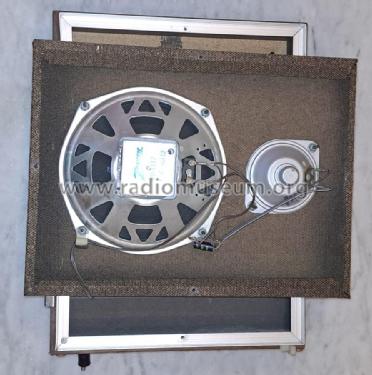

• Radio with stereo record changer. MW and stereo FM. Mono/stereo switch. Internal ferrite antenna for MW and external antenna sockets for both MW and FM. 4-speed disc changer. By selecting the speed of the record the tonearm is positioned at the beginning of the record. The two speakers are equipped with a 200 mm diameter woofer and an 80 mm tweeter. They can be detached from the device to be positioned even remotely. Treble and bass tone adjustment controls. Recorder input and recording output.

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
