Z2248RD "Super Royal" Ch= 17Z22
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1956/1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 111285
-
- alternative name: Chicago Radio Lab

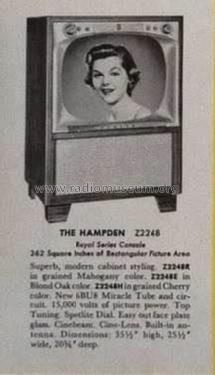

Copy from Zenith folder.

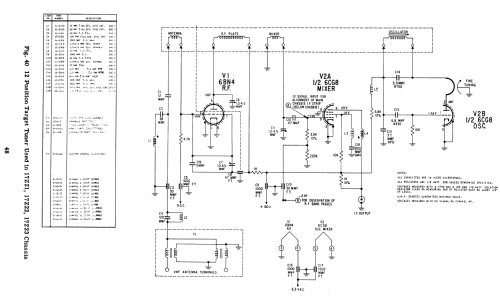

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BN4 6CG8 3CB6 3CB6 3CB6 6AU8 3BN6 6AQ5 6BU8 6CM7 6CN7 6CG7 6DQ6 1B3GT 6AX4GT or 6AX4GTA 5U4GA or 5U4GB 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.3 W (1.6 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Z2248RD "Super Royal" Ch= 17Z22 - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 25.5 x 36 x 20.25 inch / 648 x 914 x 514 mm
- Notes
-
The Zenith Z2248RD is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 17Z22 and picture tube 21ALP4A.
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Zenith Service Manual - 1957 Television Receivers TV-17 (Zenith 1957 Television Receivers Service Manual TV-17 Dated 5-29-56)
- Literature/Schematics (2)
- Zenith Service Manual - Supplement to TV-17 (TV-17S1-RR, for 1957 models)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
