T2367Y Ch= 22T20
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 336635
-
- alternative name: Chicago Radio Lab
Copy from Zenith folder.

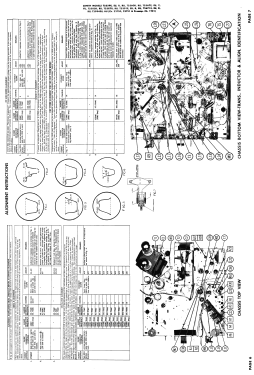

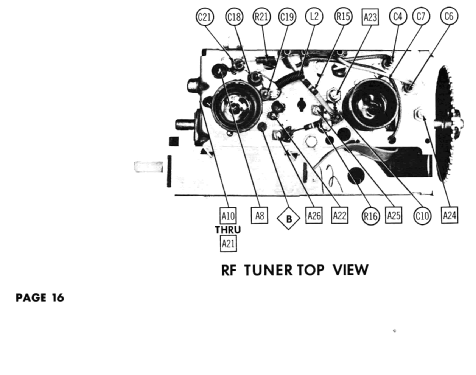

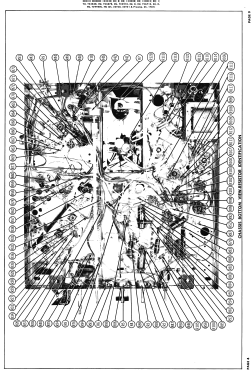

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6BK7A 6U8 6CB6 6CB6 6CB6 12BY7 12AX7 6AU6 6BN6 12AX7 6AQ5 6AQ5 6BE6 6BX7GT 6AQ7GT 6SN7GTA 6CD6G 6AX4GT 1B3GT 5U4GA 5U4GA 21ACP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: T2367Y Ch= 22T20 - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Zenith model T2367Y is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 22T20, VHF tuner S21700 and picture tube 21ACP4A.
