T315P Ch= 5M06
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 87361
-
- alternative name: Chicago Radio Lab
Sams Photofact Folders reference picture

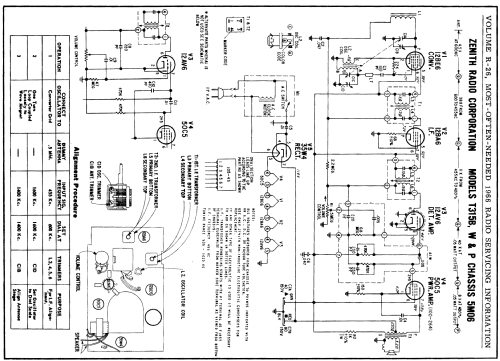

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T315P Ch= 5M06 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 12.5 x 8 x 5.5 inch / 318 x 203 x 140 mm
- Notes
- The Zenith Modell T315P is an AC Operated AM Superheterodyne Receiver.
- Net weight (2.2 lb = 1 kg)
- 5 lb 0 oz (5 lb) / 2.270 kg
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 26, 1966
- Literature/Schematics (1)

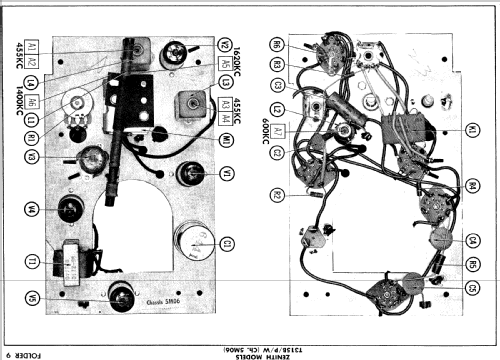

- Photofact Folder, Howard W. SAMS (Date 11-65, Set 783, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
