• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 87609

• • alternative name: Chicago Radio Lab

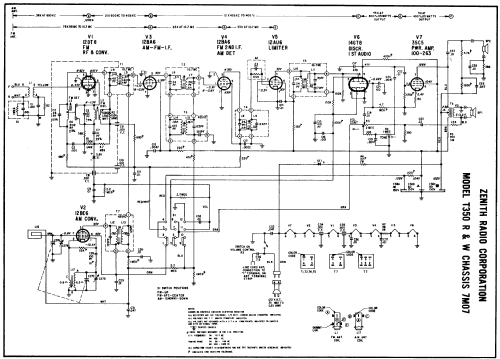

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12DT8 12BA6 12BA6 12AU6 12BE6 14GT8 35C5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: T350W Ch= 7M07 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Diode Rectifier.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 27, 1967-69 (last vol.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
