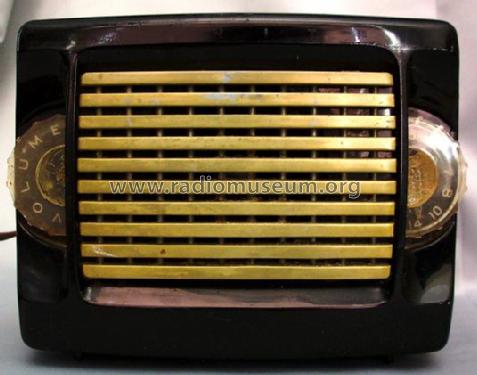

T402Y Ch=4T42
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 73602
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / Battery Pack 1.5 & 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T402Y Ch=4T42 - Zenith Radio Corp.; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Zenith model T402Y is a battery operated portable AM superheterodyne receiver.
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 15, 1955
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 294 Folder 13 dated 10-55)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
