T524R Ch= 5L07
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 73605
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T524R Ch= 5L07 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 13.25 x 5.875 x 5.75 inch / 337 x 149 x 146 mm
- Notes
-
Zenith model R524R is an AC operated AM superheterodyne receiver with electric clock.
- Source of data
- Collector's Guide to Antique Radios 4. Edition

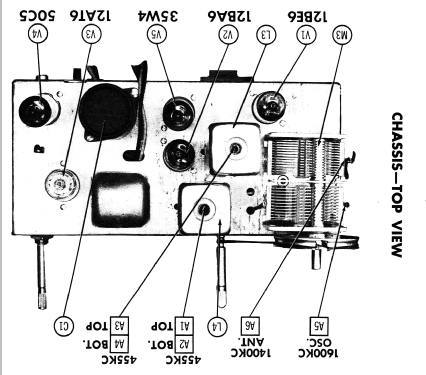

- Literature/Schematics (1)

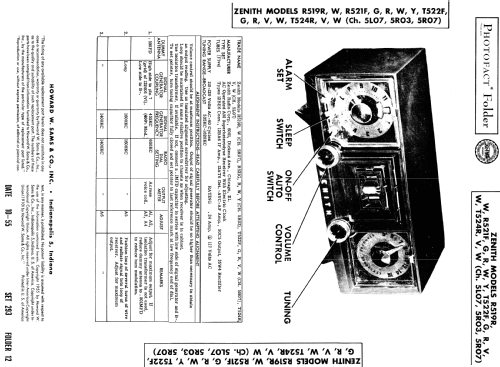

- Photofact Folder, Howard W. SAMS (Set 293; Folder 12; 10-1955)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
