• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82318

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12BA6 12AT7 12BA6 12BA6 12AU6 19T8 35C5

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: T723 Ch=7T04 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 195 x 190 mm / 12.6 x 7.7 x 7.5 inch

• Notes

• Zenith model T723 is an AC-DC operated AM-FM superheterodyne receiver. Built-in loop antenna.

• Circuit diagram reference

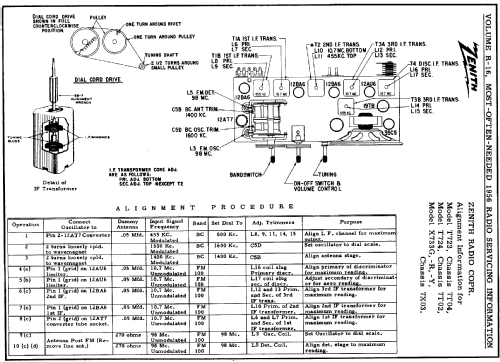

• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)

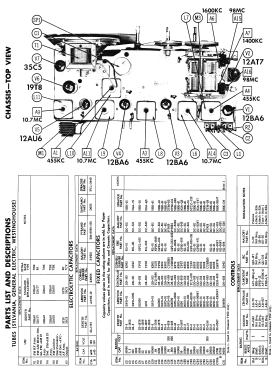

• Photofact Folder, Howard W. SAMS (Set 309 Folder 16 dated 3-56)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
