• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73607

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BJ6 6AB4 12AT7 12BA6 12BA6 12AU6 19T8 35C5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

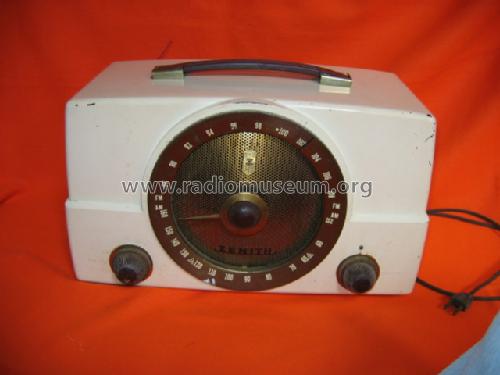

• Model: T825 Ch= 8T01 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15 x 8.75 x 7.5 inch / 381 x 222 x 191 mm

• Notes

• Selenium rectifier; handle; painted Bakelite.

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 15, 1955

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (287-17, 1955)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
