T1816L The Cambridge Ch= 16T20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
126737

- alternative name: Chicago Radio Lab

Schematics

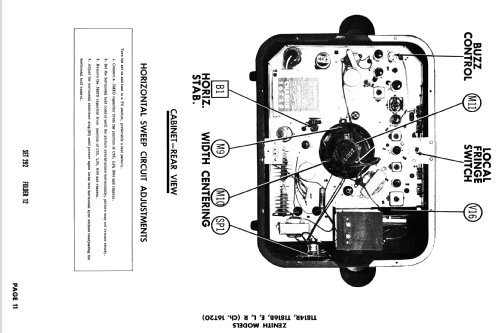

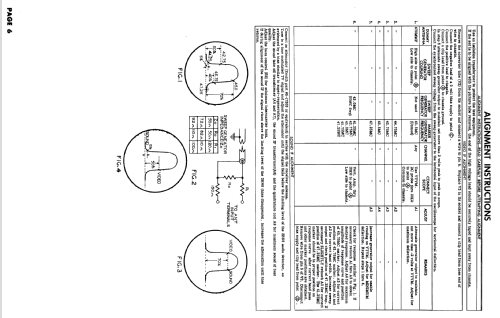

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648357) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648358) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648359) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648360) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648361) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648362) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648363) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648364) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648365) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648366) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648367) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648368) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648369) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648370) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648371) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648372) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648373) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648374) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648375) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 2648376) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (3)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 716233) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (2)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 716234) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (2)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 716236) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (2)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 716235) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (2)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 716237) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (2)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 716238) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (2)

T1816L The Cambridge Ch= 16T20; Zenith Radio Corp.; (ID = 716239) Television — Zenith Radio Corp.; T1816L The Cambridge Ch= 16T20 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
16

Valves / Tubes
5BK7A 5U8 3CB6 3CB6 6AU8 6AU8 3BN6 5AQ5 3CS6 12B4A 3AL5 6SN7GTB 12CU6 12AX4GTA 1B3GT 17AVP4A

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Material
Metal case

from Radiomuseum.org
Model: T1816L The Cambridge Ch= 16T20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
20.25 x 13.25 x 16.44 inch / 514 x 337 x 418 mm

Notes
17 " b/w TV with US standard VHF tuner, built-in pull out antenna, hide-away power cord, Local-Distance (tuner) Switch, two-tone color combination satin silver and cork-texture.

Zenith model T1816L is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 16T20, a VHF tuner and picture tube 17AVP4A.

Source of data
-- Original prospect or advert

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 292 Folder 12 dated 10-55)
