The Metropolitan X562 W, Y

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1967 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
244049

- alternative name: Chicago Radio Lab

Schematics

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1969322) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (3)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1969323) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (3)

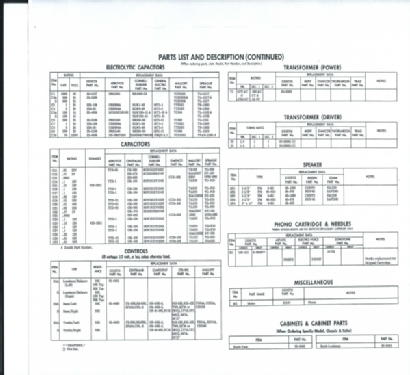

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1969324) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (3)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1969325) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (3)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1560099) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1560097) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1560098) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1560100) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1560102) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1560103) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1560104) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1560105) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1563419) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1563422) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1750665) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1750667) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

The Metropolitan X562 W, Y; Zenith Radio Corp.; (ID = 1750668) R-Player — Zenith Radio Corp.; The Metropolitan X562 W, Y (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
Changer (Record changer)

Power type and voltage
Alternating Current supply (AC) / 120 Volt

Loudspeaker
5 Loudspeakers

Power out
32 W (unknown quality)

Material
Various materials

from Radiomuseum.org
Model: The Metropolitan X562 W, Y - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
51.625 x 18.4375 x 15.8125 inch / 1311 x 468 x 402 mm

Notes
Zenith The Metropolitan X562 is a 5 speaker portable stereo phonograph with solid state amplifier.

Luggage styled cabinet with twin detachable speaker units.
Given dimensions: open with speakers.

Cabinet:
X562W .. with grained Walnut Vinyl band
X562Y Black with .. white and black grille cloth

Mentioned in
- - Manufacturers Literature

Author
Model page created by Oscar Herrera. See "Data change" for further contributors.
