The Morley K2240E Ch= 21K20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1953 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
342872

- alternative name: Chicago Radio Lab

Schematics

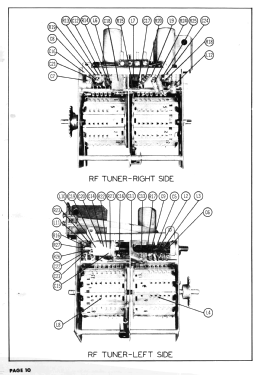

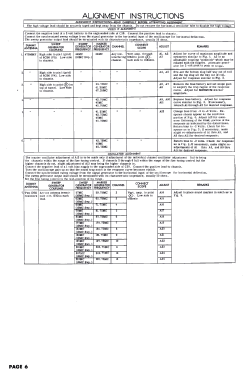

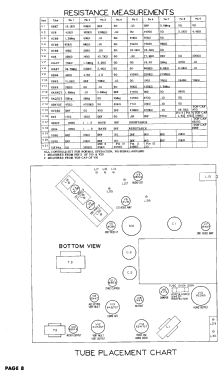

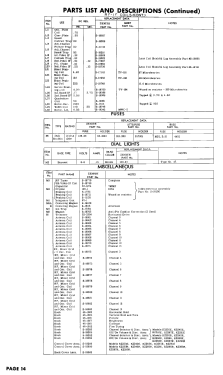

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117181) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117182) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117183) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117184) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117185) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117186) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117187) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117188) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117189) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117190) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117191) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117192) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117193) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117194) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 3117195) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (3)

The Morley K2240E Ch= 21K20; Zenith Radio Corp.; (ID = 2834362) Television — Zenith Radio Corp.; The Morley K2240E Ch= 21K20 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
21

Valves / Tubes
6BK7 6U8 6CB6 6CB6 6CB6 6U8 12AU7 12AX7 6BN6 6BK5 6BE6 6AH4GT 6AQ7GT 6SN7GT 6CD6G 6V3 1B3GT 1X2A 5U4G 5U4G 21FP4A

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

Material
Wooden case

from Radiomuseum.org
Model: The Morley K2240E Ch= 21K20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
25.5 x 22.625 x 19.75 inch / 648 x 575 x 502 mm

Notes
Zenith model K2240E is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 21K20 VHF tuner S-18770 and picture tube 21FP4A.
Automatic One-Knob Tuning.Finish: blonde. Also in Mahogany veneers and selected hardwoods available as Model Zenith The Morley K2240R.

Mentioned in
-- Original prospect or advert (One day you will own a Zenith TV 1952)

Literature/Schematics (1)

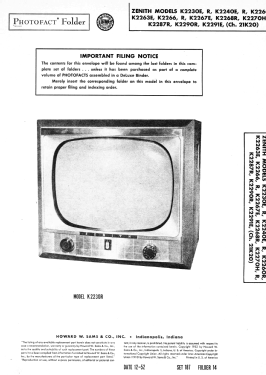

Photofact Folder, Howard W. SAMS (Set 187, folder 14, dated 12-52)

Author
Model page created by Franz Scharner. See "Data change" for further contributors.
